Choosing a pattern involves more than matching a catalogue photograph: relief changes how a wall catches light, how seams align and how the sheet behaves during fabrication. By comparing diamond, checks, lines, cubes and linen patterns, you can select the right appearance, specify it precisely and avoid preventable installation defects.
Key takeaways
- Choose diamond patterns for visual movement and broader-looking surfaces.
- Match the pattern scale and finish to traffic, lighting and cleaning needs.
- Specify sheet thickness, grade, embossing direction, joints and flat dimensions.
- Approve a full-size sample before cutting, bending, welding or bulk production.
How Diamond Geometry Changes Appearance Compared with Other Patterns

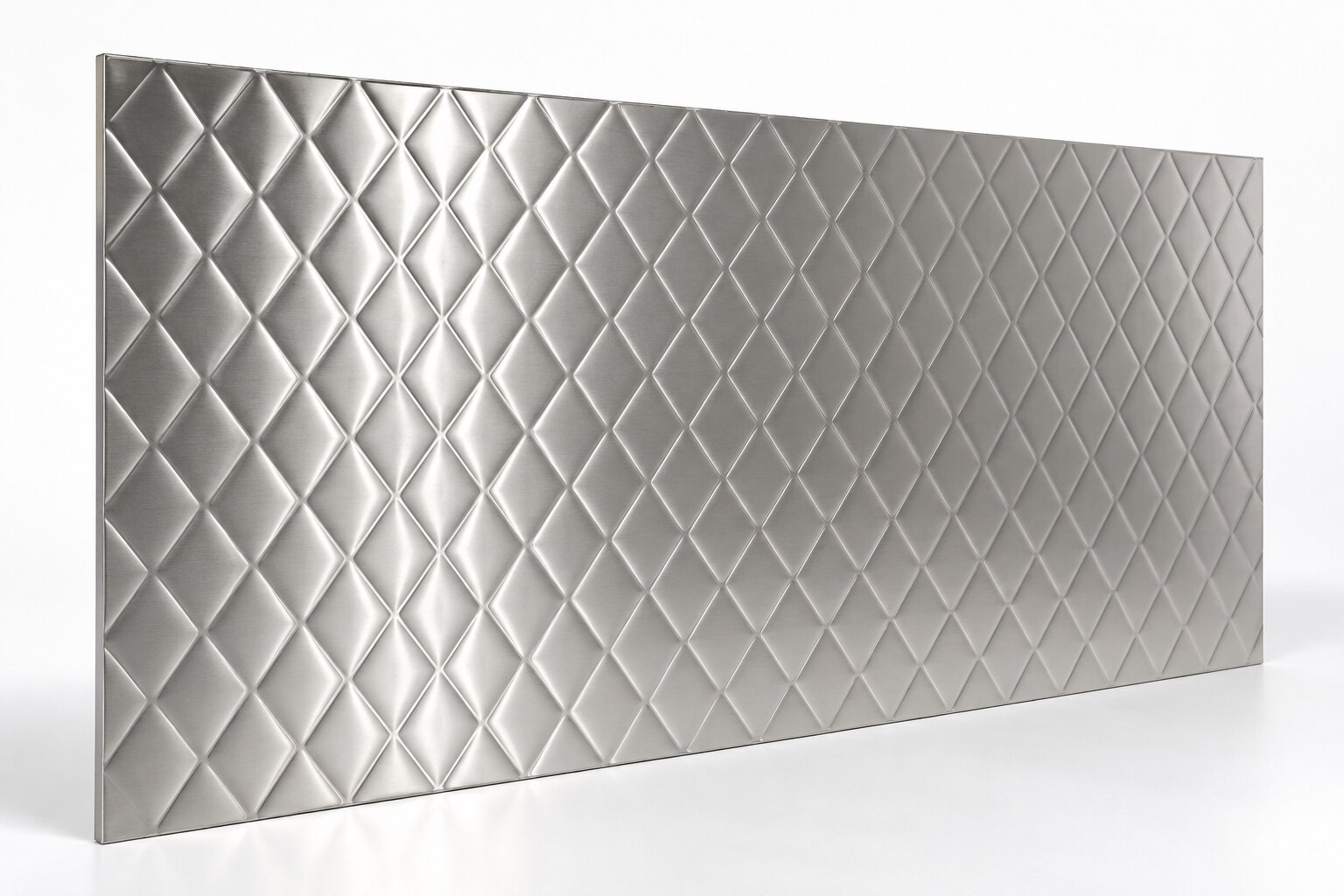

Diamond embossed stainless steel sheets break light into repeated angled facets, creating movement and a wider sense of surface than a plain sheet.
The relief catches highlights as you walk past, so a large wall appears active rather than flat; the same geometry can make joints, dents or uneven lighting more noticeable when they interrupt the rhythm.
| Pattern | Visual effect | Spatial impression |
|---|---|---|
| Diamond | Directional facets and repeating peaks | Adds energy, depth and a broader-looking surface |
| Checks | Square highlights with regular crossings | Feels orderly, balanced and distinctly architectural |
| Vertical lines | Continuous light-and-shadow channels | Draws the eye upward and can make walls or columns feel taller |
| 3D cubes | Deep alternating faces and strong shadows | Creates bold projection and a sculptural, high-relief effect |
| Linen | Fine, shallow texture with dispersed highlights | Softens glare and reads as restrained rather than patterned |
| Flat mirror | One continuous reflected image | Expands perceived space but shows fingerprints and distortions clearly |
A diamond pattern is not automatically “diamond plate.” Rolled stainless-steel floor plate, covered by ASTM A793, is specified for service and traction; decorative embossed stainless steel sheets are selected primarily for appearance. A mirror-colour PVD coating over diamonds reflects in broken facets, not as the uninterrupted image of a flat PVD mirror sheet.
Judge a large panel at its installed viewing distance and lighting, because a small sample cannot reproduce changing relief highlights.
Which Pattern Fits Walls, Lifts, Columns, Counters and Doors?
Choose the pattern by viewing distance, panel scale and how much handling the surface will receive. Diamond suits feature walls, column cladding and reception counters where directional geometry adds energy, but specify decorative pressed diamond rather than assuming rolled tread plate; ASTM A793 covers rolled stainless-steel floor plate, not decorative appearance.
| Pattern | Best applications | Why it fits | Watch out |
|---|---|---|---|
| Diamond | Feature walls, columns, counters | Strong, directional rhythm disguises small handling marks | Large relief can look busy on narrow doors or lift panels |
| Checks | Counters, doors, partitions | Creates a controlled grid that suits modern, geometric interiors | Misaligned joints are immediately visible |
| Vertical lines | Lift interiors, columns, doors | Makes narrow or low spaces appear taller and guides the eye upward | Horizontal seams interrupt the intended direction |
| 3D cubes | Reception walls, feature columns, statement doors | Adds depth and changing highlights for a focal surface | Projection feels excessive on high-contact counters |
| Linen | Large walls, lift surrounds, counters and doors | Fine texture gives a quieter finish and masks fingerprints | Texture can disappear at long viewing distances |
For stainless steel designer sheets, approve a sample under the project’s lighting and from the intended viewing distance. Confirm pattern direction, joint alignment and acceptable marks before production; a small flat sample cannot fully predict relief and highlight changes across a large panel.
Managing Fingerprints, Scratches, Joints and Pattern Alignment
Fine diamond relief breaks up fingerprints and light handling marks because reflections scatter across many small facets. Large diamonds hide broad smears less effectively, and a scratch crossing several facets becomes a strong diagonal interruption. Deep relief can conceal a minor dent, but a crushed ridge remains obvious because its highlight stops abruptly.
| Pattern scale | Defect visibility | Seam risk |
|---|---|---|
| Fine diamonds | Masks fingerprints and tiny scuffs; exposes crushed ridges | Small pitch errors repeat quickly across the joint |
| Large diamonds | Shows smears and scratches across several facets | A one-pitch mismatch creates a conspicuous offset |
| Directional diamonds | Draws the eye along the running direction | Rotating one sheet makes the joint appear broken |
For diamond pattern SS sheets, specify the running direction on elevation drawings and keep the same orientation on every adjacent panel. Match pitch, edge distance and relief before fixing sheets; a seam that is straight but one half-pattern out of register looks wider than the actual gap.
Order panels from the same production batch when colour or PVD coating matters.
- Check alignment under the project’s actual lighting and viewing distance.
- Keep factory edges at visible joints where possible.
- Mark the face that remains exposed during cutting, bending and installation.
What to Specify Before Ordering Diamond Pattern SS Sheets
“2 mm diamond sheet” is not a complete purchase description. The quoted thickness might refer to the unembossed base or the raised surface, producing different stiffness, weight and fabrication results.
| Item | Specify | Why it matters |
|---|---|---|
| Material | Stainless grade, such as 304 or 316 | Grade controls corrosion resistance and compatibility with the environment |
| Thickness | Nominal base thickness, plus measurement reference | Prevents confusion between base thickness and overall embossed height |
| Geometry | Diamond pitch, length, width, relief height and coverage | Controls appearance, bending behaviour and seating |
| Finish | 2B, No. 4, bead-blasted or PVD colour, including visible face | Determines reflectivity, cleaning response and colour consistency |
| Dimensions | Sheet length, width and allowable tolerances | Prevents unusable cut sizes and joint gaps |
| Orientation | Running direction and face to remain visible | Keeps patterns aligned after cutting, bending or installation |
For diamond metal sheets for manufacturing, add these requirements:
- State whether the product is decorative pressed sheet or rolled floor plate; ASTM A793 applies to rolled stainless-steel floor plate, not every diamond embossed panel.
- Specify the actual fabrication route, including cutouts, bends, welds and fastener locations. Request a prototype using the production geometry and finish.
- Do not claim slip resistance from the word “diamond.” Name EN 16165 or DIN 51130, the test direction, contamination condition and required result.
How Embossing Changes Cutting, Bending, Drilling and Welding
Leave extra material for trial cuts, bend development and edge cleanup: embossed stainless steel sheets do not behave like flat stock of the same nominal thickness. The raised diamonds work-harden during pressing, so cutting can leave burrs, flatten relief at the edge or expose a visibly different highlight.
1. Cut one production-thickness sample using the intended saw, laser or shear settings. Check burr height, heat-affected discoloration, edge squareness and whether the diamond pattern remains consistent near the cut.
2. Validate the minimum bend radius, bend direction and tooling clearance on a sample containing the actual pattern. Do not rely on a flat-sheet bend chart; cracking, springback or crushed diamonds can appear at transition zones.
3. Support the sheet behind every drilling point. A fastener seated only on raised diamonds can loosen or pull the panel out of plane, while drilling without backing can deform the surrounding relief.
4. Weld with a controlled sequence and suitable fixturing, then inspect the opposite face for distortion and heat tint. Remove contamination with stainless-compatible methods; carbon-steel brushes, abrasive dust and chloride residues can cause rust staining.
5. Approve a fabricated prototype before releasing tooling for diamond metal sheets for manufacturing. Use the specified PVD finish, edge treatment, supports and joint details, because fabrication marks often dominate the finished appearance. Distinguish decorative sheets from rolled tread plate; ASTM A793 covers rolled stainless-steel floor plate, not decorative geometry.
Approving Samples, Finishes and Fabrication Before Production
Approve a full-size production mock-up before releasing the order. A small flat coupon cannot show how embossed relief changes highlights across a wall or lift interior.
1. Record the exact pattern, pitch, relief height, orientation and sheet dimensions. If the supplier says “diamond plate,” confirm whether it is decorative pressed sheet or rolled floor plate covered by ASTM A793. Do not accept “2 mm diamond sheet” without stating whether 2 mm refers to the unembossed base or the raised surface.
2. Approve the grade, nominal base thickness, coating and finish together. A mirror-colour PVD coating over relief creates faceted reflections, not the uninterrupted image of a flat mirror. For stainless steel designer sheets, write down the viewing distance, lighting, acceptable shade variation and brushing direction.
3. Build a production-size sample with the planned cutting, bending, drilling, welding and joint details. Check the minimum bend radius and forming direction because embossed, work-hardened areas can crack or distort during fabrication.
4. Inspect cut edges, welds, handling marks and adjacent-sheet alignment at the agreed distance. Reject samples that show unacceptable pattern mismatch or glare.
5. Require cleaning and passivation after fabrication. Carbon-steel dust, abrasive residue and chloride deposits can leave rust staining. NIXON STEELIUM LLP can be asked to confirm these sample and fabrication details before production.
Related products
 | Stainless Steel Embossed Sheets Specification Product Name Stainless Steel Products Steel Type Stainless Steel Steel Product Type Steel Sheets Grade 304 Thickness 0.5mm-3.0mm... View product → |
 | Stainless Steel Embossed Sheets Specification Product Name Stainless Steel Products Steel Type Stainless Steel Steel Product Type Steel Sheets Grade 304 Thickness 0.5-3.0 Millimeter... View product → |
Frequently asked questions
How does diamond geometry change the appearance of stainless steel sheets?
Angled diamond facets reflect light in repeated directions, creating more movement and visual depth than plain, brushed or linear patterns. Pattern scale and lighting affect how prominent the effect appears.
Which applications suit diamond pattern stainless steel sheets?
Diamond patterns suit feature walls, lift interiors, columns, counters and doors when you want a structured decorative surface. Compare traffic, cleaning, impact and joint visibility before choosing them for each location.
What should you specify before ordering diamond embossed stainless steel sheets?
Specify the stainless steel grade, sheet thickness, embossed pattern size, surface finish, sheet dimensions, embossing direction, quantity, edge treatment and whether matching panels must align across joints.
How does embossing affect fabrication?
Embossing changes the sheet’s working surface and affects cutting, bending, drilling and welding. Fabricators need the approved sample, pattern direction, bend locations, joint layout and welding sequence before production.
